Video Analysis¶

1 Camshift¶

Opencv C++ API:

RotatedRect CamShift(InputArray probImage, Rect& window, TermCriteria criteria)

Note

probImage: Back projection of the object histogram. See calcBackProject()
window: Initial search window
riteria: Stop criteria for the underlying meanShift()

demo调用, 源码

TEST(Camshift, demo)
{
    std::string filename = GetOpenCVDatasetDirectory() + "/cup.mp4";
    Camshift demo;
    demo.RunDemo(filename);
}

函数使用：

void Camshift::RunDemo(const std::string& filename)
{
    VideoCapture capture(filename);
    if (!capture.isOpened()){
        //error in opening the video input
        cerr << "Unable to open file!" << endl;
    }

    Mat frame, roi, hsv_roi, mask;
    // take first frame of the video
    capture >> frame;

    // setup initial location of window
    Rect track_window(300, 200, 100, 50); // simply hardcoded the values

    // set up the ROI for tracking
    roi = frame(track_window);
    cvtColor(roi, hsv_roi, COLOR_BGR2HSV);
    inRange(hsv_roi, Scalar(0, 60, 32), Scalar(180, 255, 255), mask);

    float range_[] = {0, 180};
    const float* range[] = {range_};
    Mat roi_hist;
    int histSize[] = {180};
    int channels[] = {0};
    calcHist(&hsv_roi, 1, channels, mask, roi_hist, 1, histSize, range);
    normalize(roi_hist, roi_hist, 0, 255, NORM_MINMAX);

    // Setup the termination criteria, either 10 iteration or move by atleast 1 pt
    TermCriteria term_crit(TermCriteria::EPS | TermCriteria::COUNT, 10, 1);

    while(true){
        Mat hsv, dst;
        capture >> frame;
        if (frame.empty())
            break;
        cvtColor(frame, hsv, COLOR_BGR2HSV);
        calcBackProject(&hsv, 1, channels, roi_hist, dst, range);

        // apply camshift to get the new location
        RotatedRect rot_rect = CamShift(dst, track_window, term_crit);

        // Draw it on image
        Point2f points[4];
        rot_rect.points(points);
        for (int i = 0; i < 4; i++)
            line(frame, points[i], points[(i+1)%4], 255, 2);
        imshow("img2", frame);

        int keyboard = waitKey(30);
        if (keyboard == 'q' || keyboard == 27)
            break;
    }
}

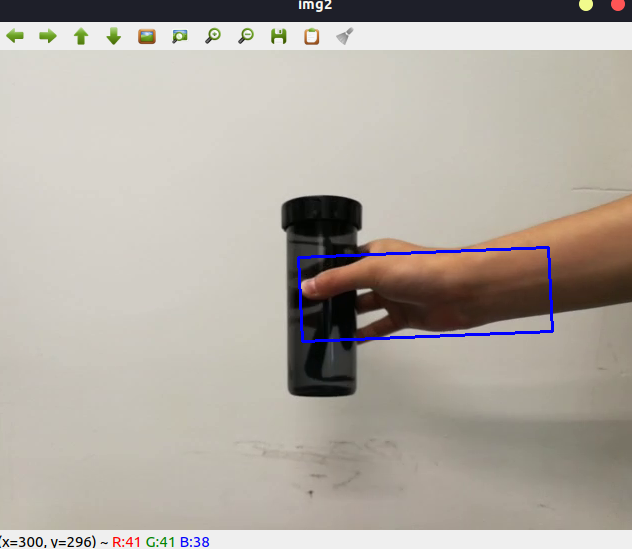

运行结果

[bin] ./xslam.opencv.video_analysis.cam_shift_test

参考源码：

Note

cam_shift_test.cpp
cam_shift.cpp
cam_shift.h

2 Meanshift¶

Opencv C++ API:

int meanShift( InputArray probImage, CV_OUT CV_IN_OUT Rect& window, TermCriteria criteria );

Note

probImage：概率分布图像，可以是目标直方图的反向投影(见 cvCalcBackProject)
Window：初始搜索窗口，可以是使用Rect定义ROI
Criteria：确定窗口搜索停止的准则，OpenCV实现该算法时定义了两个停止条件：迭代次数达到设置的最大值；窗口中心的漂移值小于某个设定的限值。

demo调用, 源码

TEST(Meanshift, demo)
{
    std::string filename = GetOpenCVDatasetDirectory() + "/slow_traffic_small.mp4";
    Meanshift demo;
    demo.RunDemo(filename);
}

函数使用：

void Meanshift::RunDemo(const std::string& filename)
{

    VideoCapture capture(filename);
    if (!capture.isOpened()){
        //error in opening the video input
        cerr << "Unable to open file!" << endl;
    }

    Mat frame, roi, hsv_roi, mask;
    // take first frame of the video
    capture >> frame;

    // setup initial location of window
    Rect track_window(300, 200, 100, 50); // simply hardcoded the values

    // set up the ROI for tracking
    roi = frame(track_window);
    cvtColor(roi, hsv_roi, COLOR_BGR2HSV);
    inRange(hsv_roi, Scalar(0, 60, 32), Scalar(180, 255, 255), mask);

    float range_[] = {0, 180};
    const float* range[] = {range_};
    Mat roi_hist;
    int histSize[] = {180};
    int channels[] = {0};
    calcHist(&hsv_roi, 1, channels, mask, roi_hist, 1, histSize, range);
    normalize(roi_hist, roi_hist, 0, 255, NORM_MINMAX);

    // Setup the termination criteria, either 10 iteration or move by atleast 1 pt
    TermCriteria term_crit(TermCriteria::EPS | TermCriteria::COUNT, 10, 1);

    while(true){
        Mat hsv, dst;
        capture >> frame;
        if (frame.empty())
            break;
        cvtColor(frame, hsv, COLOR_BGR2HSV);
        calcBackProject(&hsv, 1, channels, roi_hist, dst, range);

        // apply meanshift to get the new location
        meanShift(dst, track_window, term_crit);

        // Draw it on image
        rectangle(frame, track_window, 255, 2);
        imshow("img2", frame);

        int keyboard = waitKey(30);
        if (keyboard == 'q' || keyboard == 27)
            break;
    }
}

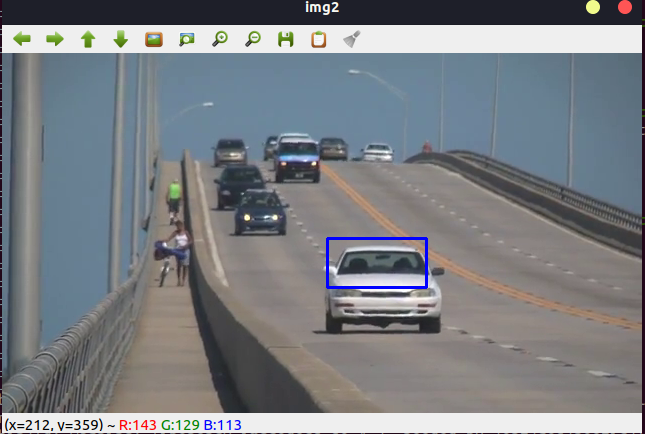

运行结果

[bin] ./xslam.opencv.video_analysis.mean_shift_test

参考源码：

Note

mean_shift_test.cpp
mean_shift.cpp
mean_shift.h

3 OpticalFlow¶

Opencv C++ API:

void cv::calcOpticalFlowPyrLK(
    InputArray      prevImg,
    InputArray      nextImg,
    InputArray      prevPts,
    InputOutputArray nextPts,
    OutputArray     status,
    OutputArray     err,
    Size    winSize = Size(21, 21),
    int     maxLevel = 3,
    TermCriteria    criteria = TermCriteria(TermCriteria::COUNT+TermCriteria::EPS, 30, 0.01),
    int     flags = 0,
    double  minEigThreshold = 1e-4
)

Note

prevImg ：buildOpticalFlowPyramid构造的第一个8位输入图像或金字塔。
nextImg ：与prevImg相同大小和相同类型的第二个输入图像或金字塔
prevPts ：需要找到流的2D点的矢量(vector of 2D points for which the flow needs to be found;);点坐标必须是单精度浮点数。
nextPts ：输出二维点的矢量（具有单精度浮点坐标），包含第二图像中输入特征的计算新位置;当传递OPTFLOW_USE_INITIAL_FLOW标志时，向量必须与输入中的大小相同。
status ：输出状态向量（无符号字符）;如果找到相应特征的流，则向量的每个元素设置为1，否则设置为0。
err ：输出错误的矢量; 向量的每个元素都设置为相应特征的错误，错误度量的类型可以在flags参数中设置; 如果未找到流，则未定义错误（使用status参数查找此类情况）。
winSize ：每个金字塔等级的搜索窗口的winSize大小。
maxLevel ：基于0的最大金字塔等级数;如果设置为0，则不使用金字塔（单级），如果设置为1，则使用两个级别，依此类推;如果将金字塔传递给输入，那么算法将使用与金字塔一样多的级别，但不超过maxLevel。
criteria ：参数，指定迭代搜索算法的终止条件（在指定的最大迭代次数criteria.maxCount之后或当搜索窗口移动小于criteria.epsilon时）。
flags ：操作标志：
- OPTFLOW_USE_INITIAL_FLOW使用初始估计，存储在nextPts中;如果未设置标志，则将prevPts复制到nextPts并将其视为初始估计。
- OPTFLOW_LK_GET_MIN_EIGENVALS使用最小特征值作为误差测量（参见minEigThreshold描述）;如果没有设置标志，则将原稿周围的色块和移动点之间的L1距离除以窗口中的像素数，用作误差测量。
minEigThreshold ：算法计算光流方程的2x2正常矩阵的最小特征值，除以窗口中的像素数;如果此值小于minEigThreshold，则过滤掉相应的功能并且不处理其流程，因此它允许删除坏点并获得性能提升

demo调用, 源码

TEST(OpticalFlow, demo)
{
    std::string filename = GetOpenCVDatasetDirectory() + "/slow_traffic_small.mp4";
    OpticalFlow demo;
    demo.RunDemo(filename);
}

函数使用：

void OpticalFlow::RunDemo(const std::string& filename)
{
    cv::Mat image1, image2;
    std::vector<cv::Point2f> point1, point2, pointCopy;
    std::vector<uchar> status;
    std::vector<float> err;

    cv::VideoCapture video(filename);
    video >> image1;
    cv::Mat image1Gray, image2Gray;
    cv::cvtColor(image1, image1Gray, cv::COLOR_RGB2GRAY);
    cv::goodFeaturesToTrack(image1Gray, point1, 100, 0.01, 10, cv::Mat());
    pointCopy = point1;

    for (int i = 0; i < point1.size(); i++)    //绘制特征点位
    {
        cv::circle(image1, point1[i], 1, cv::Scalar(0, 0, 255), 2);
    }

    cv::namedWindow("光流特征图");
    while (true)
    {
        video >> image2;
        if (cv::waitKey(33) == ' ')  //按下空格选择当前画面作为标定图像
        {
            cv::cvtColor(image2, image1Gray, cv::COLOR_RGB2GRAY);
            cv::goodFeaturesToTrack(image1Gray, point1, 100, 0.01, 10, cv::Mat());
            pointCopy = point1;
        }
        cv::cvtColor(image2, image2Gray, cv::COLOR_RGB2GRAY);
        cv::calcOpticalFlowPyrLK(image1Gray, image2Gray, point1, point2, status, err, cv::Size(50, 50), 3); // LK金字塔
        int tr_num = 0;
        auto status_itr = status.begin();
        while (status_itr != status.end()) {
            if (*status_itr > 0)
                tr_num++;
            status_itr++;
        }
        if (tr_num < 6) {
            std::cout << "you need to change the feat-img because the background-img was all changed" << std::endl;
            if (cv::waitKey(0) == ' ') {
                cv::cvtColor(image2, image1Gray, cv::COLOR_RGB2GRAY);
                cv::goodFeaturesToTrack(image1Gray, point1, 100, 0.01, 10, cv::Mat());
                pointCopy = point1;
            }
        }
        for (int i = 0; i < point2.size(); i++)
        {
            cv::circle(image2, point2[i], 1, cv::Scalar(0, 0, 255), 2);
            cv::line(image2, pointCopy[i], point2[i], cv::Scalar(255, 0, 0), 2);
        }

        cv::imshow("光流特征图", image2);
        std::swap(point1, point2);
        image1Gray = image2Gray.clone();
    }
}

运行结果

[bin] ./xslam.opencv.video_analysis.optical_flow_test

参考源码：

Note

optical_flow_test.cpp
optical_flow.cpp
optical_flow.h

4 buildOpticalFlowPyramid¶

Opencv C++ API:

int cv::buildOpticalFlowPyramid (
    InputArray img,
    OutputArrayOfArrays pyramid,
    Size winSize,
    int maxLevel,
    bool withDerivatives = true,
    int pyrBorder = BORDER_REFLECT_101,
    int derivBorder = BORDER_CONSTANT,
    bool tryReuseInputImage = true)

Note

img 8位输入图像
pyramid 输出金字塔
winSize 光流算法的窗口大小。必须不少于calcOpticalFlowPyrLK的winSize参数。需要计算金字塔级别所需的填充。
maxLevel 从0开始的最大金字塔等级编号。
withDerivatives 设置为每个金字塔等级预计算梯度。如果金字塔是在没有梯度的情况下构建的，那么calcOpticalFlowPyrLK将在内部对其进行计算。
pyrBorder 金字塔图层的边框模式。
derivBorder 梯度边框模式。
tryReuseInputImage 如果可能，将输入图像的ROI放入金字塔中。您可以传递false来强制复制数据。

demo调用, 源码

TEST(BuildOpticalFlowPyramid, demo)
{
    std::string filename = GetOpenCVDatasetDirectory() + "/0002_dota2.avi";
    BuildOpticalFlowPyramid demo;
    demo.RunDemo(filename);
}

函数使用：

void BuildOpticalFlowPyramid::RunDemo(const std::string& filename)
{
    cv::VideoCapture cap(filename);
    if(!cap.isOpened()){
        std::cerr << "cannot open camera\n";
    }

    cv::Mat frame,gray,grayPre,framePre,status,err;
    const int maxLevel = 3;
    std::vector<cv::Point2f> prevPts, nextPts;
    std::vector<cv::Mat> pyramid1,pyramid2;

    cap >> frame;
    if(frame.empty()){
        std::cerr << "grab first frame error.\n";
    }

    cv::cvtColor(frame,grayPre,cv::COLOR_BGR2GRAY);
    cv::Size subPixWinSize(10,10);
    cv::TermCriteria termcrit(cv::TermCriteria::COUNT|cv::TermCriteria::EPS,20,0.03);
    while(cap.isOpened())
    {
        cap >> frame;
        if(frame.empty()){
            std::cerr << "cannot grab frame from camera.\n";
            break;
        }

        cv::cvtColor(frame,gray,cv::COLOR_BGR2GRAY);

        // 检测触点
        goodFeaturesToTrack(gray, nextPts, 100, 0.01, 2.0);
        cornerSubPix(gray, nextPts, subPixWinSize, cv::Size(-1,-1), termcrit);
        goodFeaturesToTrack(grayPre, prevPts, 100, 0.01, 2.0);
        cornerSubPix(gray, prevPts, subPixWinSize, cv::Size(-1,-1), termcrit);

        // 构造流光金字塔
        cv::buildOpticalFlowPyramid(gray, pyramid1, cv::Size(21,21), maxLevel);
        cv::buildOpticalFlowPyramid(grayPre, pyramid2, cv::Size(21,21), maxLevel);

        // 使用LK流光算法检测
        cv::calcOpticalFlowPyrLK(pyramid1,pyramid2,prevPts,nextPts,status,err);
        gray.copyTo(grayPre);

        size_t i, k;
        for( i = k = 0; i < nextPts.size(); i++ ){
            cv::circle( frame, nextPts[i], 3, cv::Scalar(0,0,255), -1, 8);
        }

        // 显示图像
        cv::imshow("frame",frame);
        if(cv::waitKey(10) == 27){
            break;
        }
    }
}

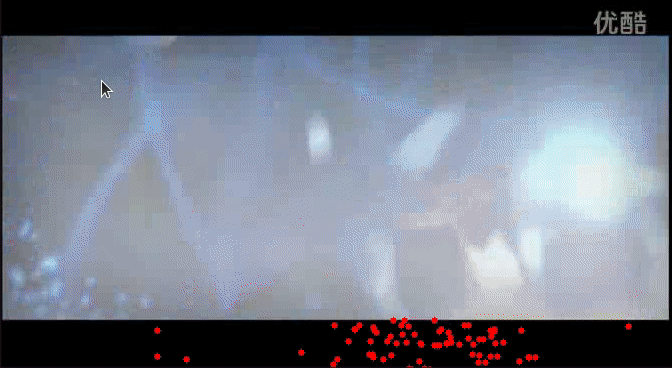

运行结果

[bin] ./xslam.opencv.video_analysis.build_optical_flow_pyramid_test

../../../_images/build_optical_flow_pyramid.gif

参考源码：

Note

build_optical_flow_pyramid_test.cpp
build_optical_flow_pyramid.cpp
build_optical_flow_pyramid.h
